Increase safety with reliable,
ISO 20560-compliant pipe markers

Clearly identify pipes for more safety

Get the pipe marking guidebook

ISO 20560 approved pipe markers


ISO 20560 pipe markers are globally recognized. The usage of pipe markers compliant to the ISO 20560 will increase your plant safety.

Those pipe markers are a combination of 2 colour zones:

  • the basic identification colour zone, in which you can put the content name and additional safety information, like pressure, temperature and speed
  • the safety colour to visualize increased risk, trough the means on GHS/CLP or ISO-7010 warning sign.


Colour scheme & Warning symbols


Colours

Pipe content Colour
Basic identification

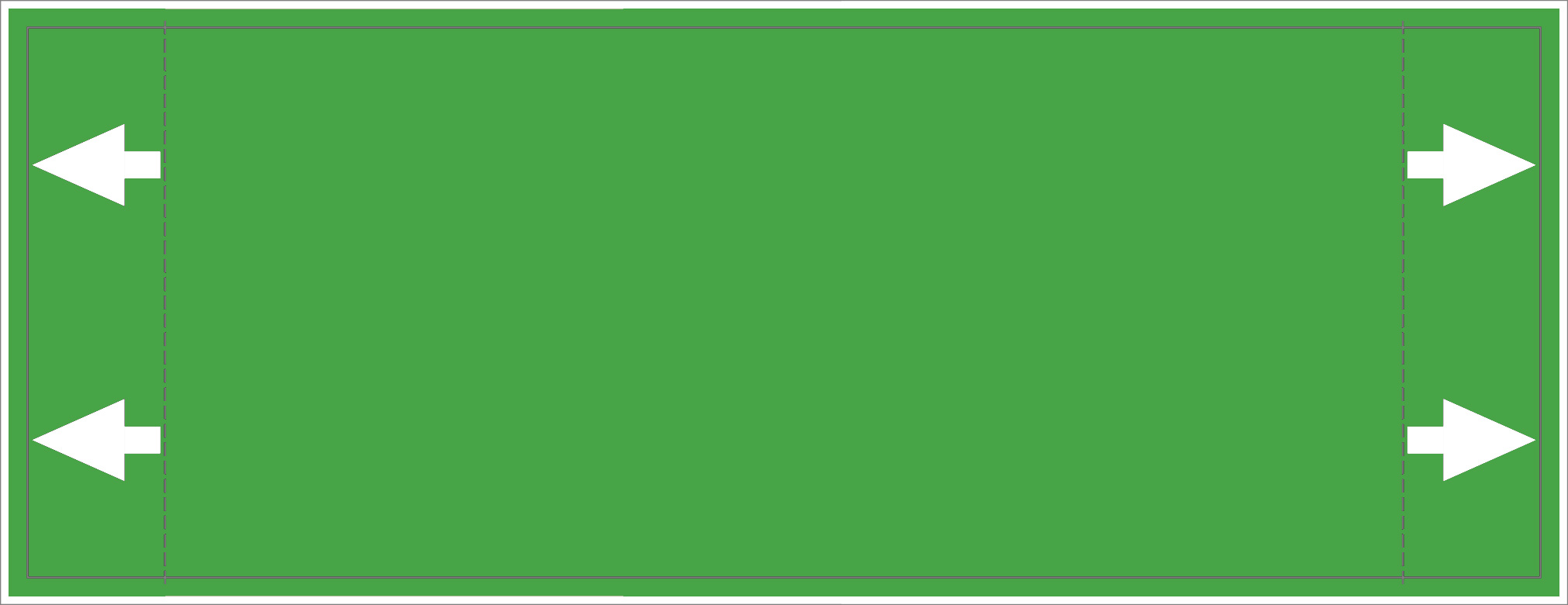

Water Green

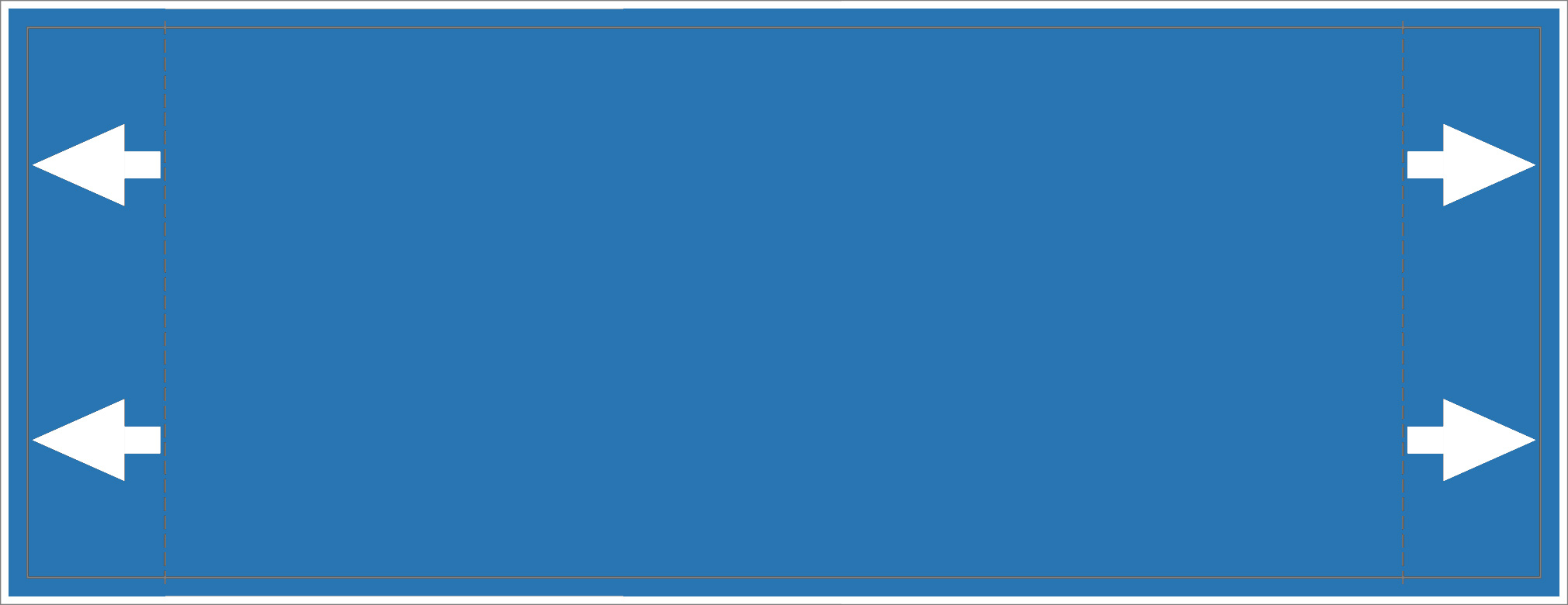

Air Blue

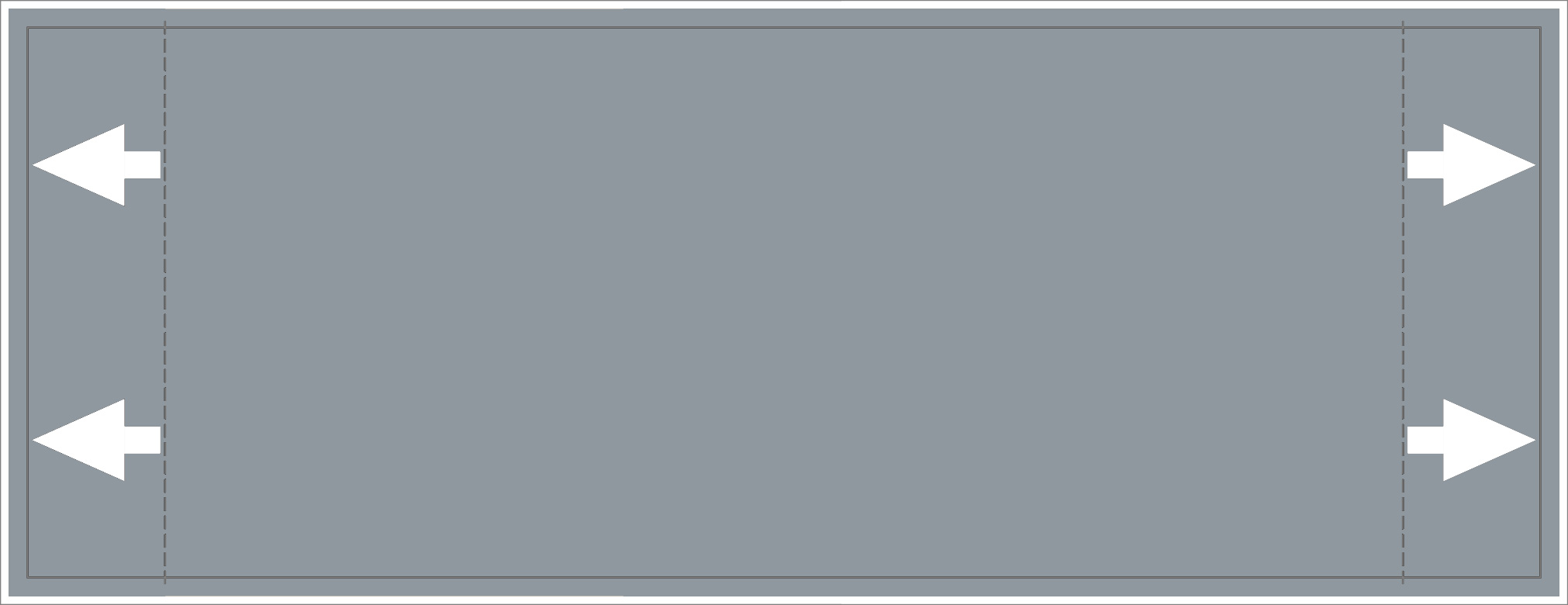

Gas in either gaseous or liquefied condition Grey

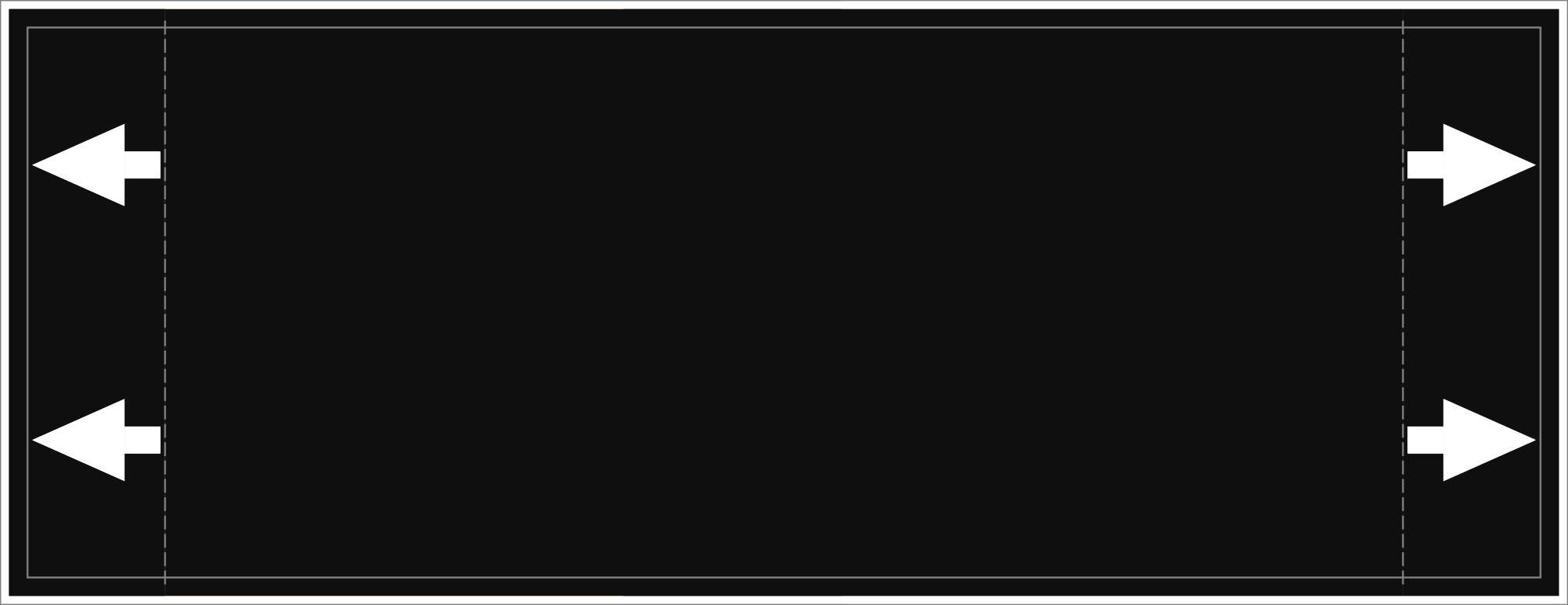

Liquids and fixed materials Black

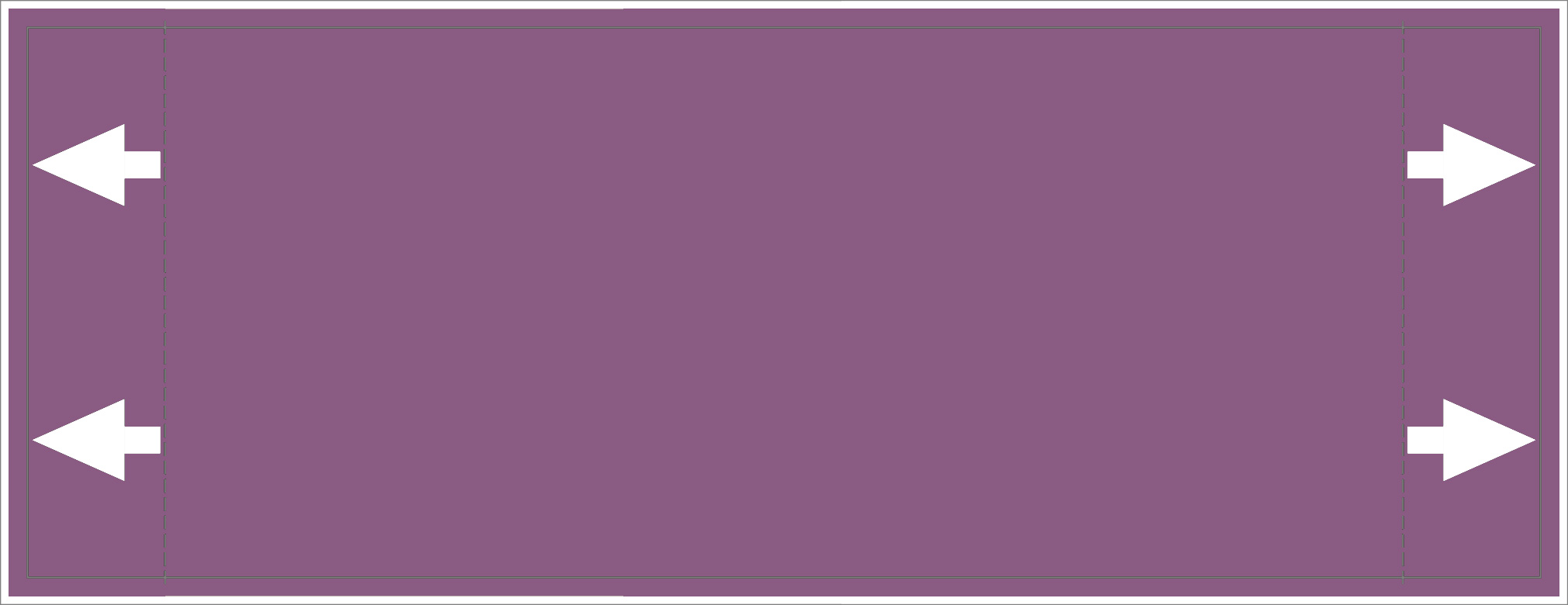

Alkalis Violet

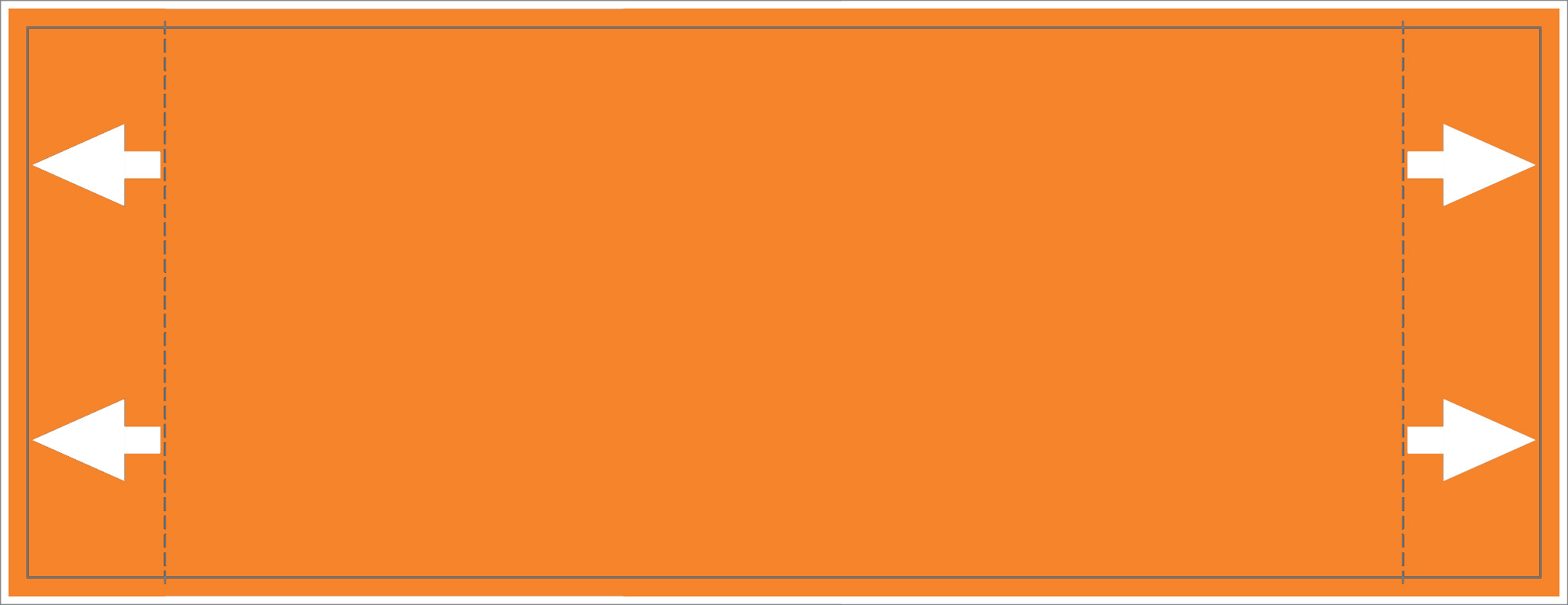

Acids Orange

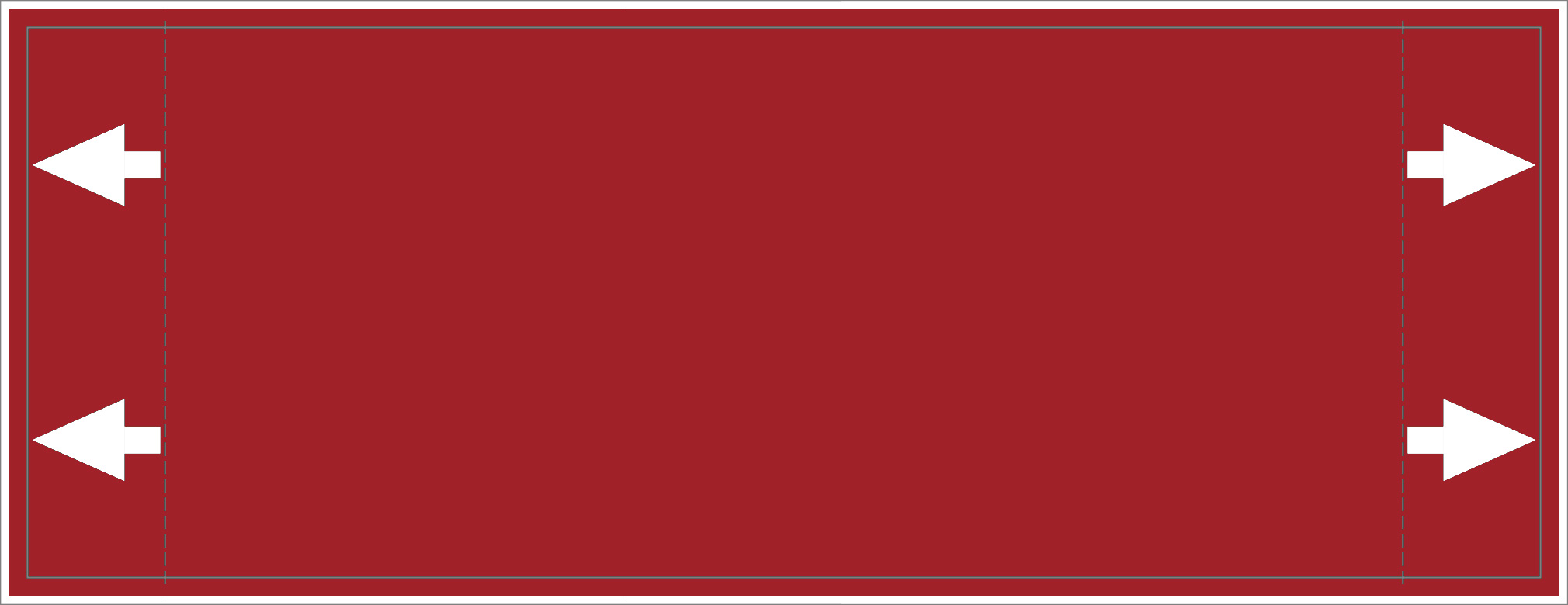

Firefighting medium Red
Safety
Hazardous Substances Yellow

Warning Symbols

The European Union requires dangerous substances to carry relevant GHS/CLP symbols to identify hazardous substances and inform users on these hazards. Other relevant symbols can be added, such as an ISO 7010 hot surface warning symbol. Relevant symbols should be grouped at one side and displayed on the yellow safety colour background.

Find all CLP/GHS symbols >>

Find all ISO 7010 warning symbols >>

Dimensions


Single pipe marker* 360° View* Min. Pipe Diameter (mm) Max. Pipe Diameter (mm) Width Basic ID (mm)**
A, A-Y A360, A360-Y 0 50 85
B, B-Y B360, B360-Y 51 100 85
C, C-Y C360, C360-Y 101 150 85
D, D-Y D360, D360-Y 151 300 120
E, E-Y E360, E360-Y 301 500 120
H, H-Y H360, H360-Y 500 3000 200

* Style A(360): Single pipe marker with 1 basic ID colour.
  Style A(360)-Y: Single pipe marker with 1 basic ID colour + yellow Safety colour.

** Width Basic ID: min. width specified by the norm.
